BSFG Bellows Mechanical Seal Aesseal Single Full Graphite Cartridge

Name: BSFG Bellows Mechanical Seal Aesseal Single Full Graphite Cartridge
Brand: BESTSEAL
Price: 1 USD

Wholesale BSFG Bellows Mechanical Seal Aesseal Single Full Graphite Cartridge from china suppliers

Place of Origin : CHINA

Gland : 316 Stainless Steel

Setting Clip Screws : Stainless Steel

Delivery Time : 15 working days

Shaft Sealing Wedge : Graphite

Outboard Drive Screws : Stainless Steel

Certification : ISO9001

Rotary Bellows Assembly : 316L SS / AM 350 / C42 / Ant. Carbon - SiC, Alloy 276 / Alloy 276 / Alloy 276 / Ant. Carbon - SiC

Clamp Ring : 316L Stainless Steel

External Drive Ring : 316L Stainless Steel

Stationary Seal Ring : Graphite / Kalrez®

Setting Clips : Metal

Draw Ring : 316L Stainless Steel / Phosphor Bronze

MOQ : 1pc

Brand Name : BESTSEAL

Stationary Face : SiC / TC

Gasket : AF1 / GFT

Packaging Details : Carton

Circlip : Stainless Steel

Rotary Sealing Wedge : Graphite

External Drive Screws : Stainless Steel

Washer : 316L Stainless Steel

Model Number : BSFG

Sleeve : 316L Stainless Steel

Supply Ability : 1000000/Month

Rotary Drive Screws : Stainless Steel / Alloy 276

Payment Terms : T/T,Western Union,D/P,D/A,L/C

Seal Drive Screws : Stainless Steel

Contact Now

AESSEAL BSFG Bellows Single Full Graphite Cartridge Mechanical Seal for Pumps

Cartridge Mechanical Seals

Bellows Seals

BSFG

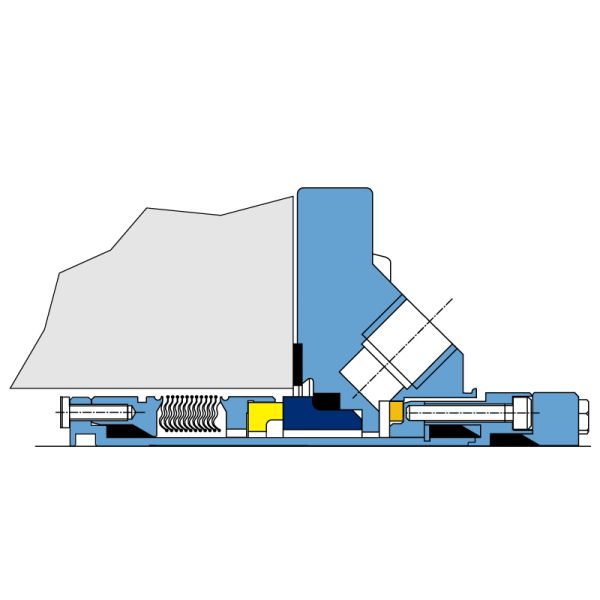

Bellows Single Full Graphite Cartridge Seal

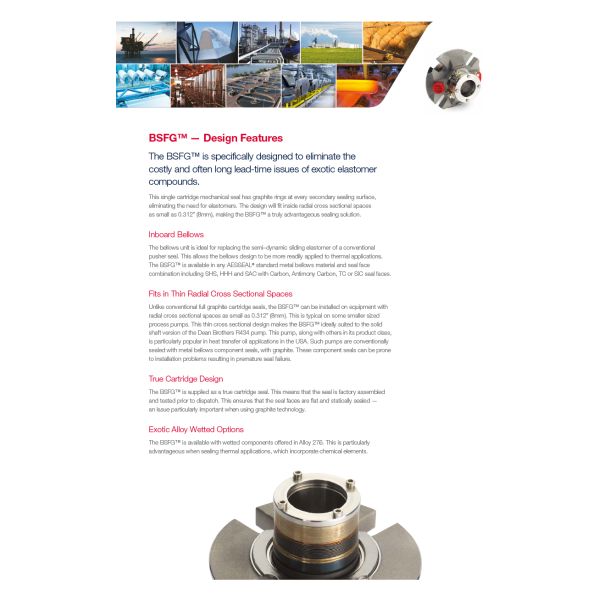

The BSFG™ (Bellows Single Full Graphite) cartridge seal is specifically designed to eliminate the costly and often long lead-time issues of exotic elastomer compounds. This seal features graphite rings at every primary sealing surface, eliminating the need for elastomers.

The hydraulically balanced bellows unit is available in a variety of different material options with either elastomer or graphite packing sealing rings.

Features

Full graphite seal for high temperature or corrosive chemical applications
Fits pumps with thin radial seal chamber cross-sections
Quench flush and drain ports for cooling or heating options to maximize seal life
Cartridge design for ease of installation
Sizes available from 1.000" to 4.000" (24mm - 100mm) in standard and ANSI Plus gland formats

Performance Capabilities

Temperature	-20℃ to 200℃, dependent on the elastomer
Pressure	Up to 2.5MPA
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size	24mm-100mm
Brand	BESTSEAL
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, FKM etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Packing	Individual packing ,1 pc in 1 small box is available as well
